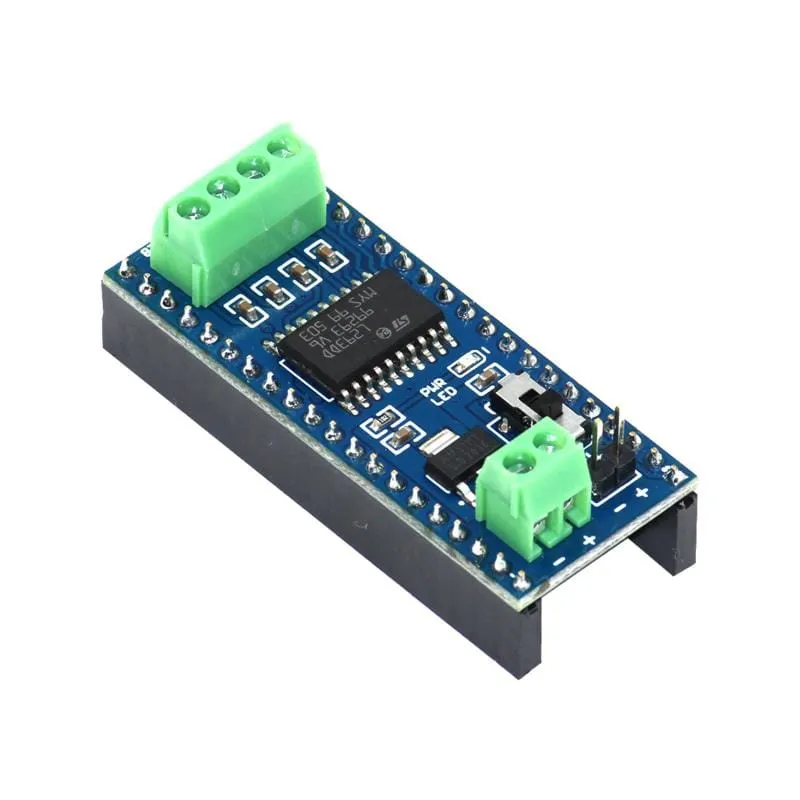

The Pico Driver Motor HAT is a DC motor control module for the Raspberry Pi Pico. The HAT uses a single H-bridge L293D motor driver offering a motor input supply range of 6 V-12V.

It is designed to connect two DC motors simultaneously or one stepper motor - great for compact motor control option for your next project. The board also includes a dedicated on/off slider switch.

The HAT comes with female headers ready for you to connect to your Raspberry Pi Pico with male headers.

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our pre-soldered Picos).

Features

• Drives two DC motors or one stepper motor
• Motor supply range: 6V - 12V
• Dedicated On/Off slider switch
• H-bridge L293D
• Female header pre-soldered
• Onboard LDO to power the Pico directly through the header

Resources

• Product GitHub
• User manual

Pinout
